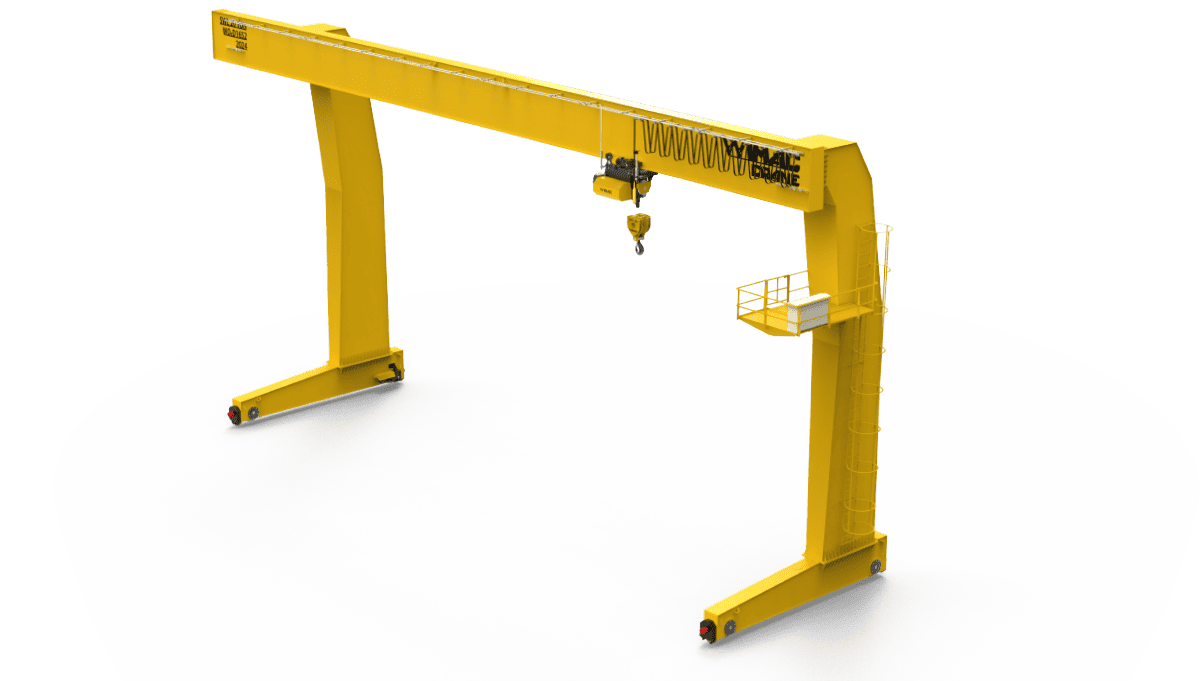

Asymmetric L-type gantry cranes — optimised single-leg portal design for sites with restricted floor space.
L-Type Gantry Cranes are designed for operations requiring wide side clearance, fast loading access, and efficient outdoor material handling, making them ideal for logistics yards, steel stock areas, pipe and profile handling, container loading zones, and natural stone facilities. Their asymmetrical "L" leg structure provides an unobstructed side approach—allowing trucks, long materials, and oversized loads to be positioned easily, while reducing wind resistance and overall self-weight, resulting in smoother travel and lower energy consumption.
With their precise, stable, and low-maintenance performance, L-type gantry cranes are a highly recommended solution for applications that demand unrestricted side loading and efficient workflow.
Wimac L-type gantry cranes are designed and manufactured in compliance with FEM and ISO standards. They offer reduced wind resistance, lower energy consumption, and high operational efficiency.

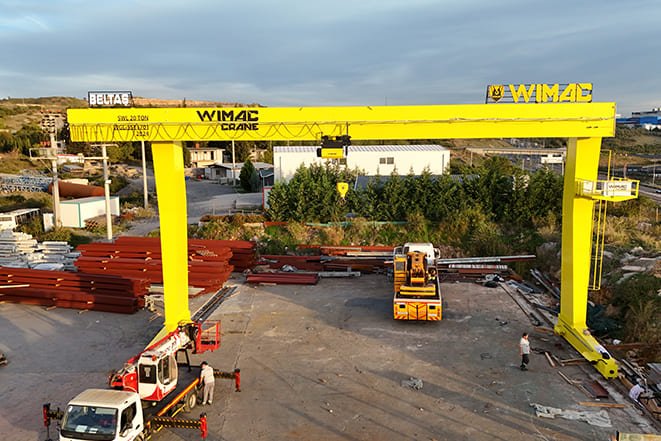

Asymmetrical structure reduces wind load and enables energy savings.
Open side passage for easy positioning of trucks and long materials.

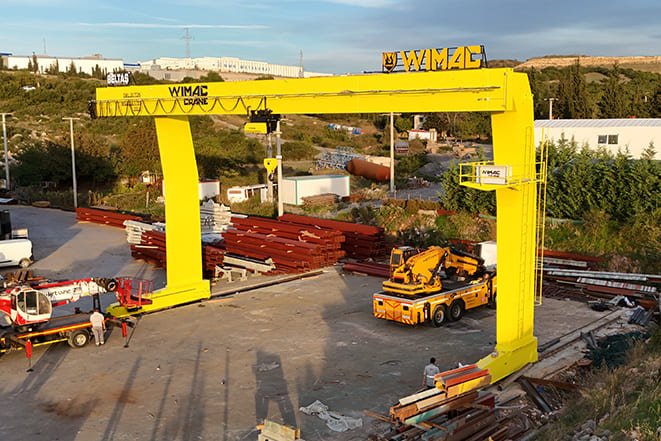

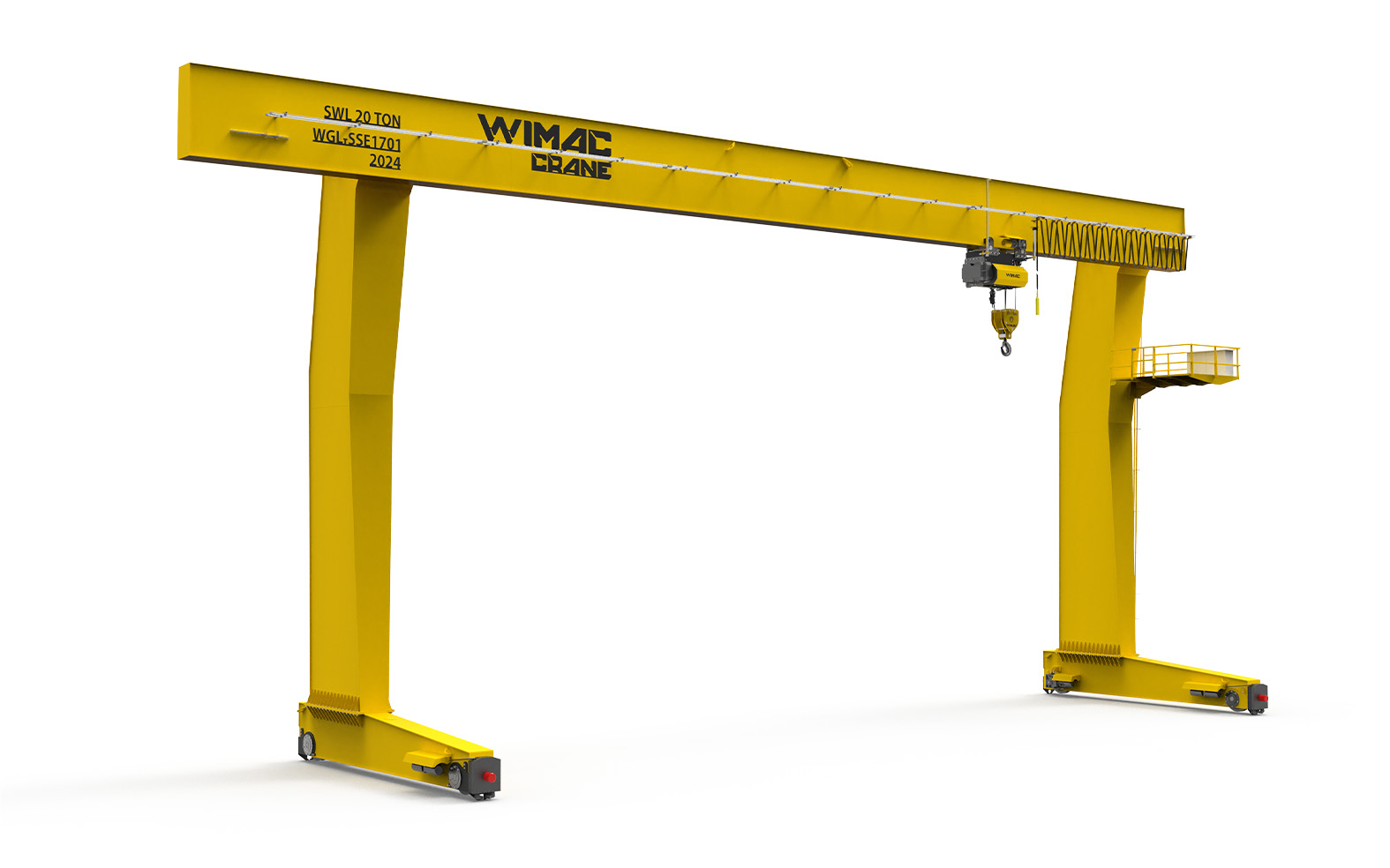

Lifting Unit
Wire rope hoist mechanism for vertical lifting with motor, drum, and brake systems.
Load Attachment
Wimac Crane Hook Block with Single, Double, Laminated or Rotating options.
Travel System
Wheel assembly for crane travel along runway rails with drive motors.
Energy Supply
Cable management for uninterrupted power and signal transmission.
Intelligence
Pendant, radio, or cabin control with PLC and safety systems.
Perfection
Additional features available for integration into your crane.
Cross-Travel & Lifting Mechanism
Trolley is designed according to project requirements. Lifting motor is a squirrel-cage asynchronous type with insulation class F. Motor protection class is IP54, IP55 or IP67.
Load Attachment Point
Engineered for maximum strength and reliability per FEM, DIN and ISO standards. Bolted modular assembly for easy service.

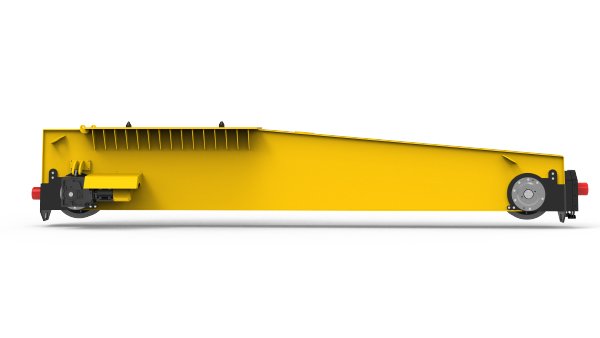

Travel System Assembly
Welded steel structure with machined wheel blocks, forged wheels with hardened treads, and sealed maintenance-free bearings.
Energy Supply
Robust cable management for uninterrupted power transmission. C-Track and I-Beam types available.
Intelligent Operation
IP55/IP67 panel, 400V 50Hz standard. Contains contactors, thermal relays, limit switches for -40°C to +70°C operation.
Reach for Perfection
Additional features available for integration into your crane system.
