Jib cranes engineered for precise workstation lifting — free-standing, wall-mounted, pillar-mounted and articulated configurations with 360 rotation and capacities from 250 kg up to 10 t.

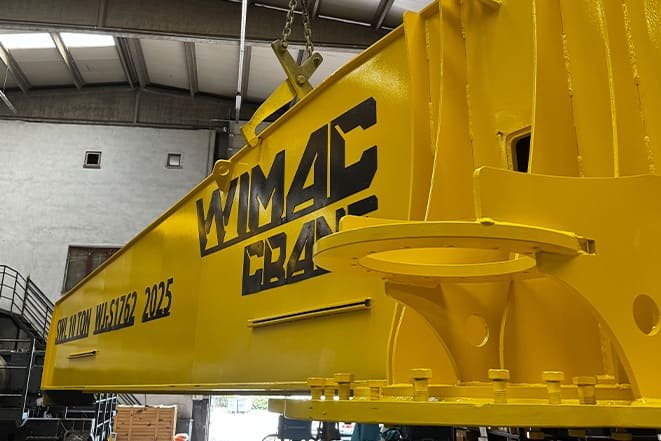

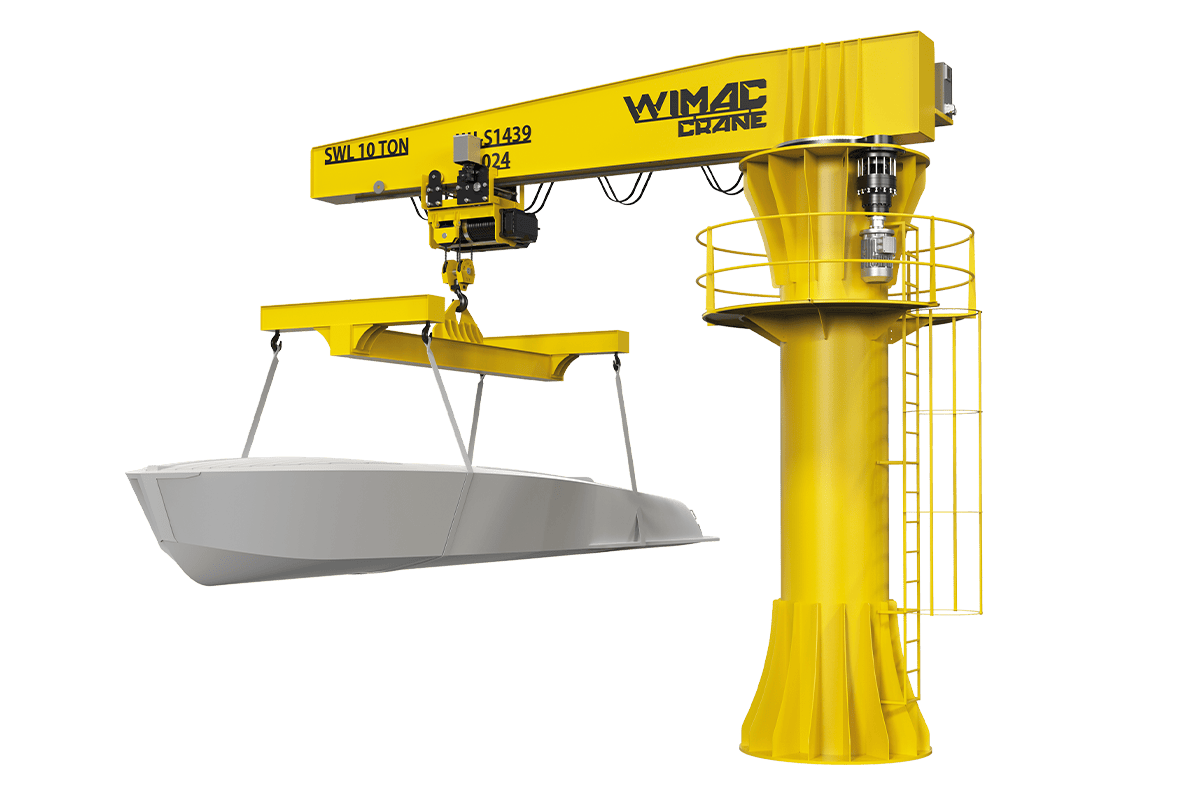

Free Standing Jib Cranes with 360° rotation are floor-mounted lifting solutions that provide complete circular coverage around a fixed pillar. These cranes are ideal for individual workstations, assembly lines, loading docks, and machine tool applications where operators need to move loads in any direction within the crane's reach.
With their independent foundation mounting, smooth rotation mechanism, and compact design, free standing jib cranes offer flexible material handling without requiring building structure support, making them perfect for new installations or facility upgrades.

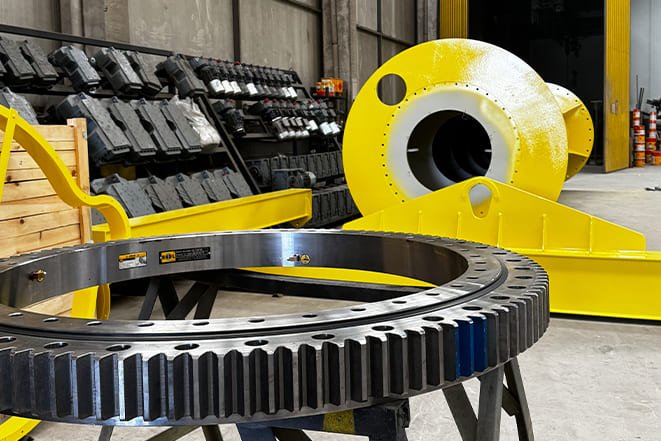

Wimac free standing jib cranes are designed and manufactured in compliance with FEM and ISO standards. They feature precision slewing bearings, ergonomic manual or powered rotation, and low-maintenance construction for years of reliable operation.
Complete circular coverage for maximum operational flexibility.
Independent foundation - no building structure support required.
Cross-Travel & Lifting
Wire rope hoist mechanism for vertical lifting with motor, drum, and brake systems.
Load Attachment
Wimac Crane Hook Block with Single, Double, Laminated or Rotating options.
Energy Supply
Cable management for uninterrupted power and signal transmission.
Intelligence

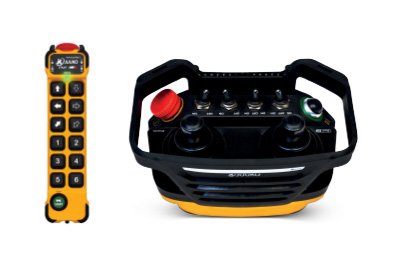

Pendant, radio, or cabin control with PLC and safety systems.
Perfection
Additional features available for integration into your crane.

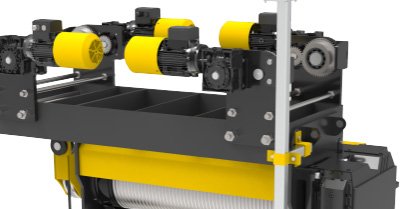

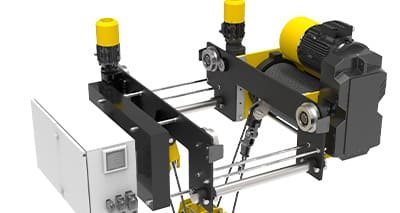

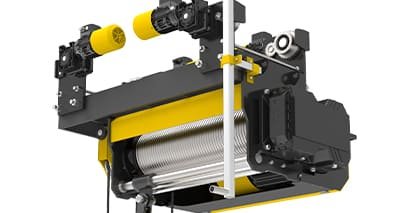

Cross-Travel & Lifting Mechanism

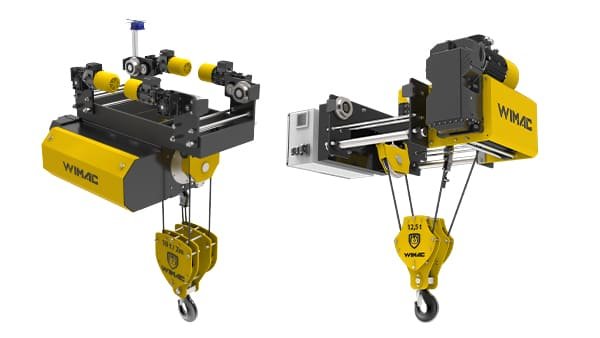

Trolley is designed according to project requirements. Lifting motor is a squirrel-cage asynchronous type with insulation class F. Motor protection class is IP54, IP55 or IP67.
Load Attachment Point
Engineered for maximum strength and reliability per FEM, DIN and ISO standards. Bolted modular assembly for easy service.

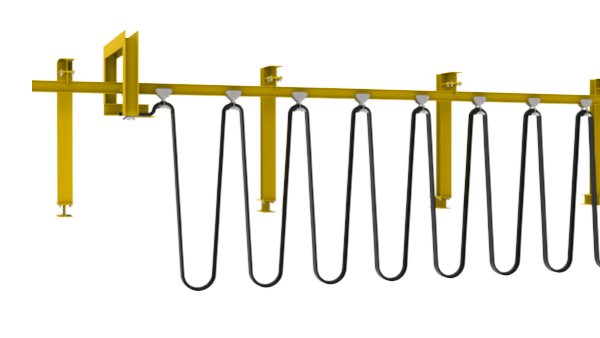

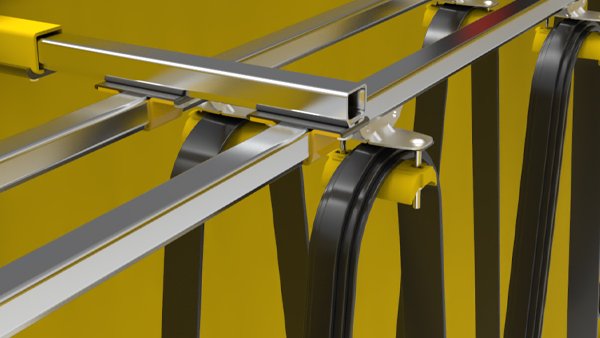

Energy Supply

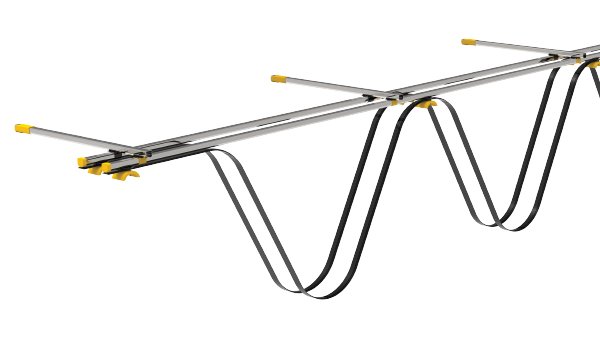

Robust cable management for uninterrupted power transmission. C-Track and I-Beam types available.

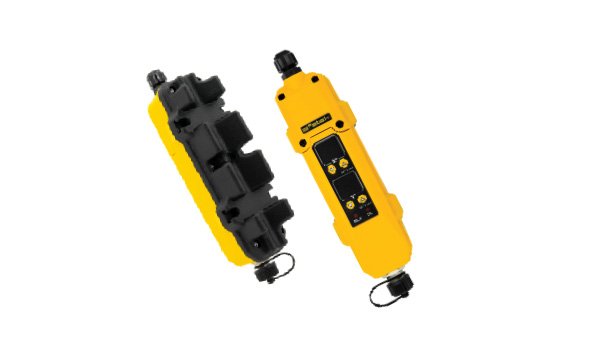

Intelligent Operation

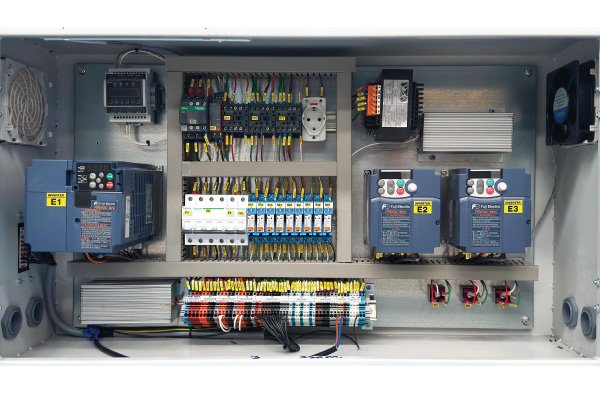

IP55/IP67 panel, 400V 50Hz standard. Contains contactors, thermal relays, limit switches for -40°C to +70°C operation.

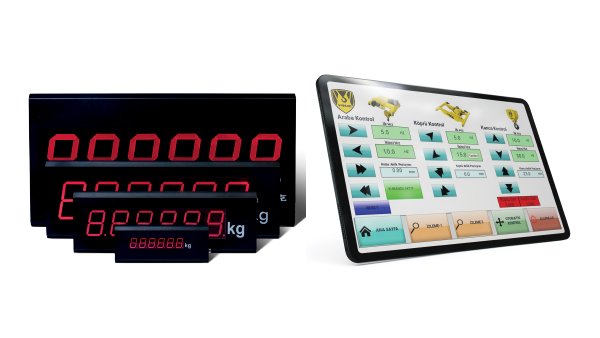

Reach for Perfection
Additional features available for integration into your crane system.
