Ex-Proof Cranes & Hoists

Three configurations engineered for hazardous-area lifting. Each unit is built with non-sparking materials, Ex-proof hooks, and certified electrical components for safe operation in Zone 1, 2, 21 and 22 environments.

Wimac Ex-Proof Crane Double Girder Crane Trolley

Cross Travel Wheels

For a wide range of applications in explosive atmospheres, robust and long-lasting cast iron running wheels can be used. In special cases, for operating speeds of 1 m/s and above, running wheels made from solid brass are optionally available to provide additional spark protection; however, this option involves increased maintenance requirements.

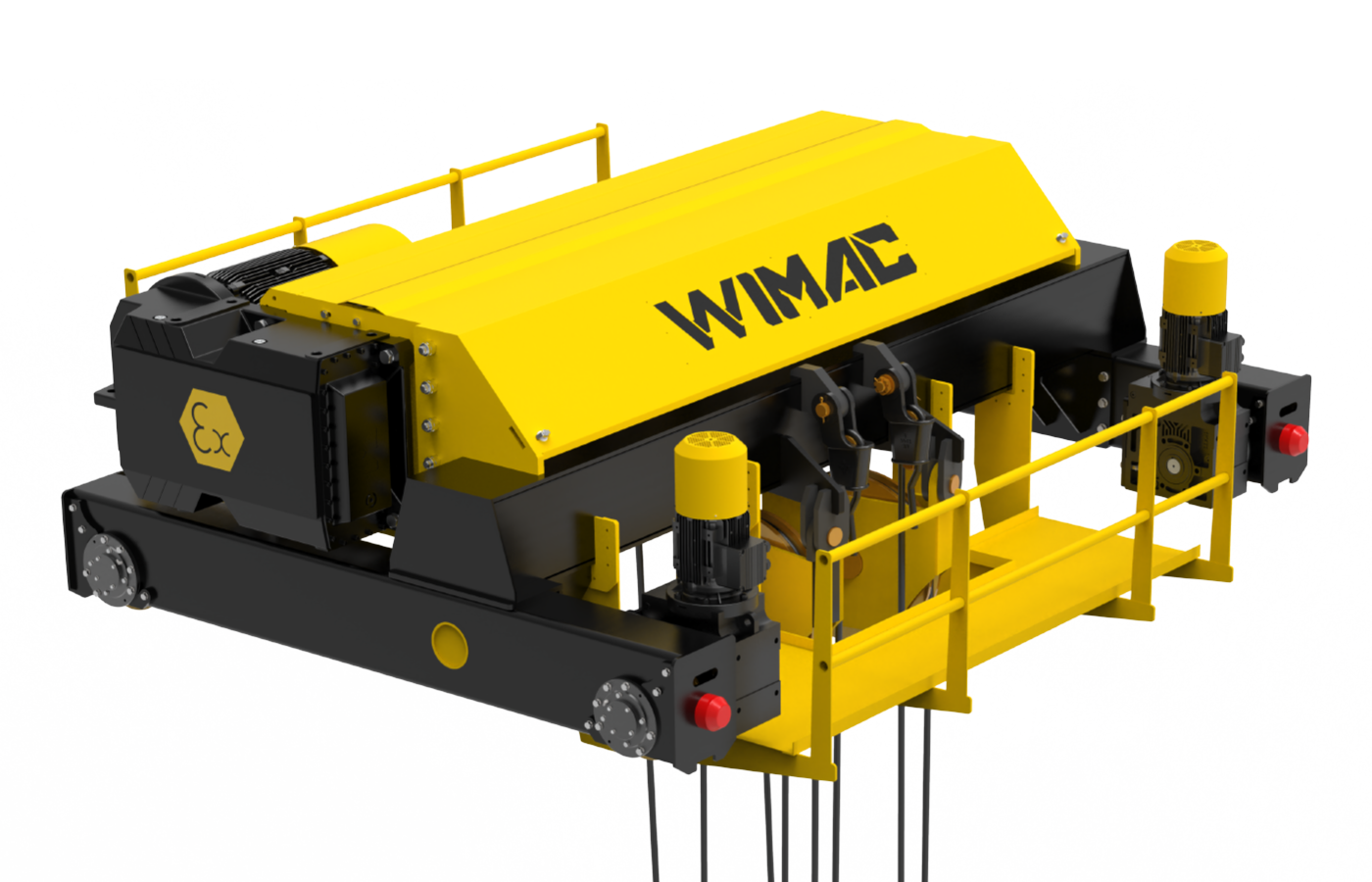

Wimac Ex-Proof Double Girder Crane Trolley — 50t

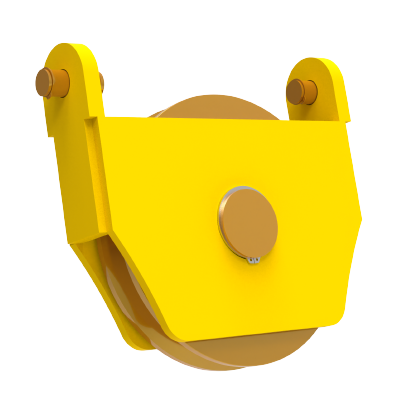

Sheave
Ex-Proof Sheave

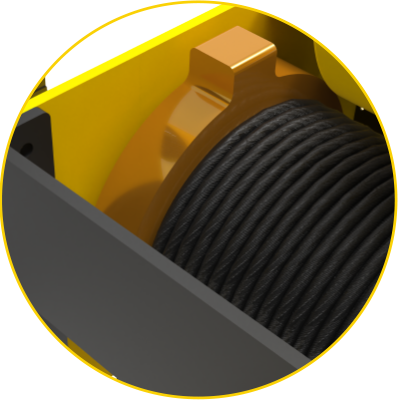

Rope Guide
Ex-Proof Rope Guide

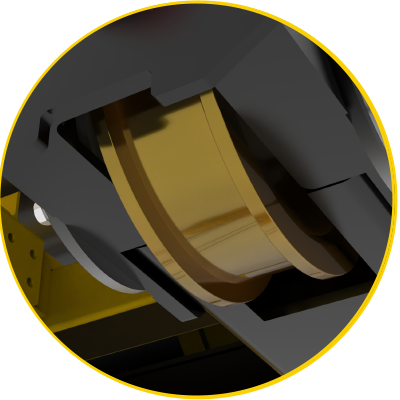

Trolley side view

Ex-Proof Hook

Explosion-proof lifting equipment is specially designed to avoid creating sparks, heat, or friction.

Ex-Proof hook variant 1 Ex-Proof hook variant 2 Ex-Proof hook variant 3 Ex-Proof hook variant 4 Ex-Proof hook variant 5
Wimac Ex-Proof Crane Standard Monorail Hoist

Cross Travel Wheels

For a wide range of applications in explosive atmospheres, robust and long-lasting cast iron running wheels can be used. In special cases, for operating speeds of 1 m/s and above, running wheels made from solid brass are optionally available to provide additional spark protection; however, this option involves increased maintenance requirements.

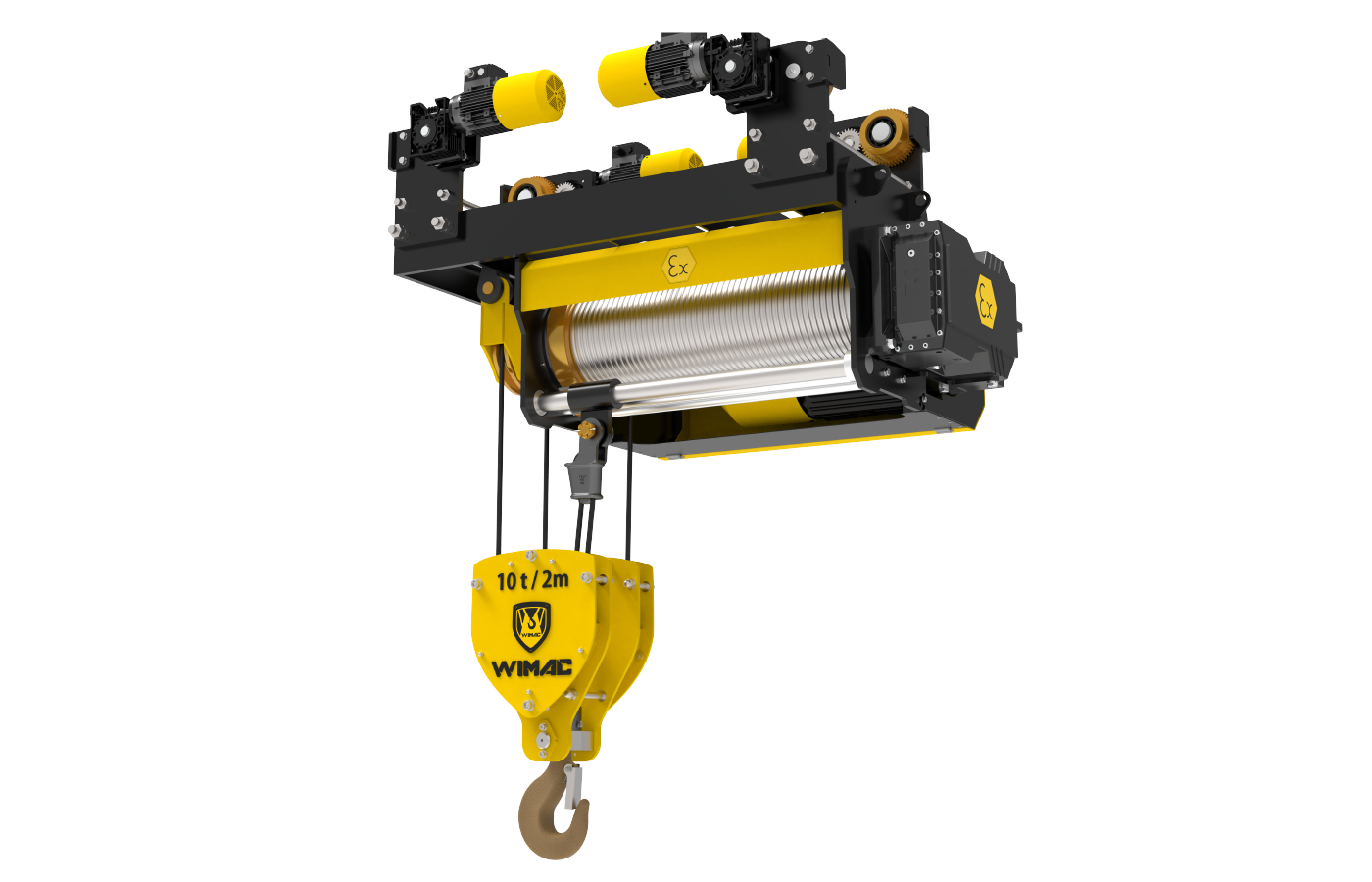

Wimac Ex-Proof Standard Monorail Hoist — 10t / 2m
Cross travel wheel detail
Sheave
Ex-Proof Sheave
Rope Guide
Ex-Proof Rope Guide

Ex-Proof Hook

Explosion-proof lifting equipment is specially designed to avoid creating sparks, heat, or friction.

Ex-Proof hook variant 1 Ex-Proof hook variant 2 Ex-Proof hook variant 3 Ex-Proof hook variant 4 Ex-Proof hook variant 5
Wimac Ex-Proof Crane Low-Headroom Monorail Hoist

Cross Travel Wheels

For a wide range of applications in explosive atmospheres, robust and long-lasting cast iron running wheels can be used. In special cases, for operating speeds of 1 m/s and above, running wheels made from solid brass are optionally available to provide additional spark protection; however, this option involves increased maintenance requirements.

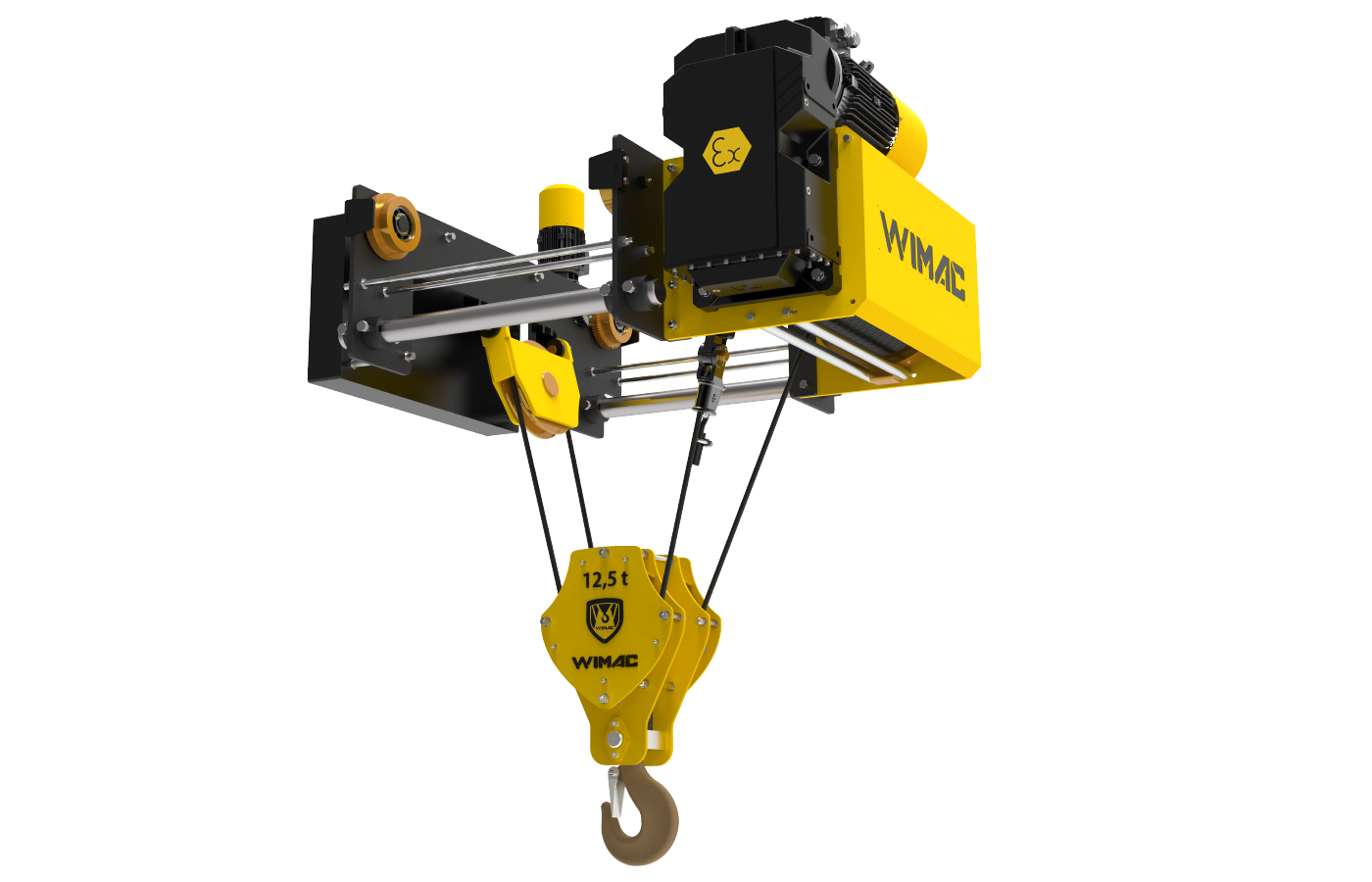

Wimac Ex-Proof Low-Headroom Monorail Hoist — 12.5t
Sheave
Ex-Proof Sheave
Rope Guide
Ex-Proof Rope Guide

Ex-Proof Hook

Explosion-proof lifting equipment is specially designed to avoid creating sparks, heat, or friction.

Ex-Proof hook variant 1 Ex-Proof hook variant 2 Ex-Proof hook variant 3 Ex-Proof hook variant 4 Ex-Proof hook variant 5
Specifications

Common Technical Parameters

Reference specifications applicable across the Ex-Proof crane range. Custom configurations available on request.

Ex-Proof Crane & Hoist Specifications
Hazardous ZonesZones 1 and 2 (gas) / Zones 21 and 22 (dust)
Gas GroupsIIA, IIB, IIC
Dust GroupsIIIA, IIIB, IIIC
Temperature ClassesT1 – T6 (max surface temperature)
Equipment Protection Level (EPL)Gb / Db (Zone 1 / 21) · Gc / Dc (Zone 2 / 22)
Protection ConceptsEx d (flameproof enclosure) · Ex e (increased safety) · Ex tb (dust enclosure)
Cross Travel WheelsCast iron (standard) / Solid brass (optional, ≥ 1 m/s)
Hook BlockNon-sparking, ATEX-certified Ex-proof construction
ComplianceEU Directive 94/9/EC (ATEX) · IECEx · IEC 60079 · FEM · EN

Need a custom configuration?

Specify your zone, gas/dust group and temperature class — we'll build to spec.
